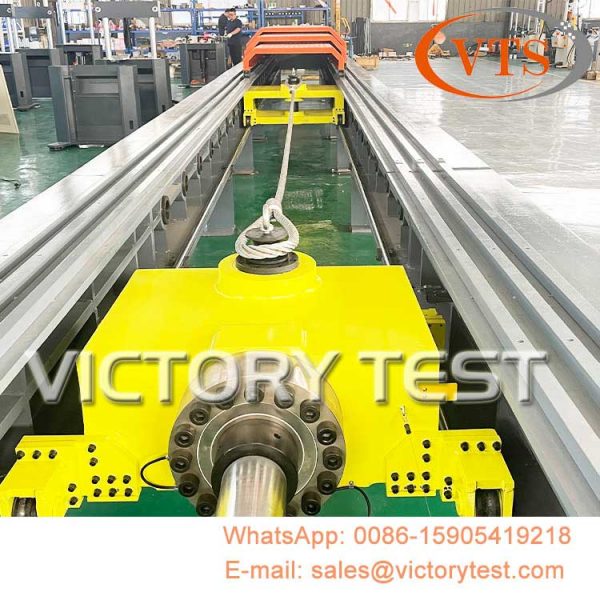

Máy kiểm tra lực kéo kéo ngang cho chuỗi dây cáp thép
Giường thử kéo ngang
(100Tấn, 200Tấn, 300Tấn, v.v, test steel wire rope, xích, shackle, overhead conductor, webbing slings, v.v)
1.Giới thiệu
WLW Series Computerized Horizontal Tensile Test Bed is mainly used for tension test of long materials, như dây thép, cáp, Dây nylon, xích, v.v. It adopts hydraulic cylinder to load, high precision load cell to measure testing force, photoelectric encoder to measure displacement, computer control, proof load and break load test, testing space and piston stroke can be made according to the customer’s requirement. The machine is calibrated according to ASTM E4 and ISO75001.
2. Main technical specifications:
Mẫu | WLW-500 | WLW-1000 | WLW-2000 | WLW-3000 | WLW-4000 |
Khả năng chịu tải | 500Kn | 1000Kn | 2000Kn | 3000Kn | 4000Kn |
Chính xác | ±1% | ||||
Effective testing space | 6 M | 10 M | 10 M | 12 M | 12 M |
Max. hành trình piston | 1000 Mm | 1000Mm | 1000Mm | 1500Mm | 1500Mm |
Cung cấp năng lượng | 3-pha, 380V±10%, 50Hz (customized made) | ||||
Môi trường làm việc | 10-30°C, Độ ẩm tương đối≤80% |
3. Test specimen
4. Test girps
5. Factory photos- Steel Wire Rope Tensile Testing machine manufacturer
Remark: the testing space and piston stroke can be made according to your requirement.
For larger load capacity, it also can be made according to the customer’s order.
For more info, please send email to: info@victorytest.com
Di động & Whatsapp: +86-15905419218
Video Horizontal Tensile test bed, Horizontal tensile test bench, Horizontal Tensile Testing machine
