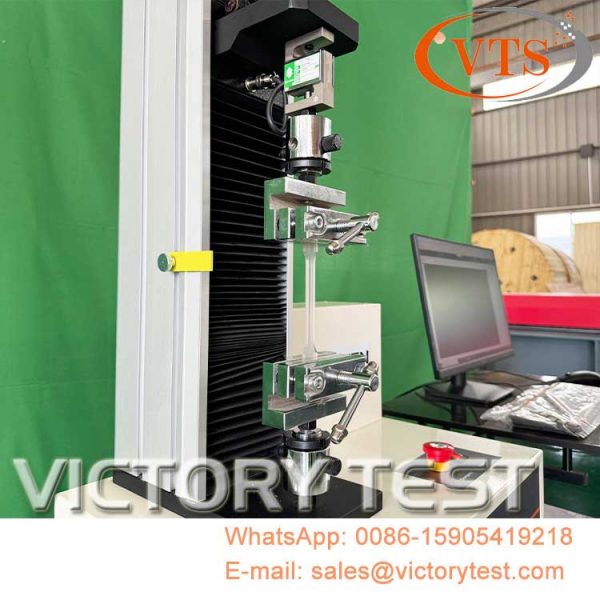

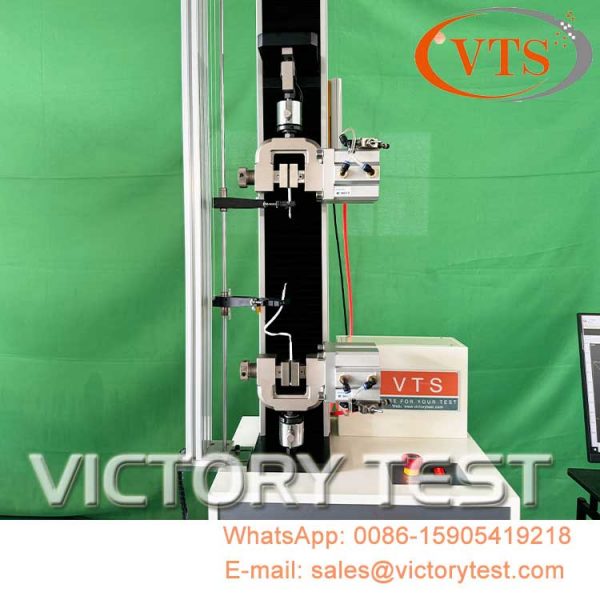

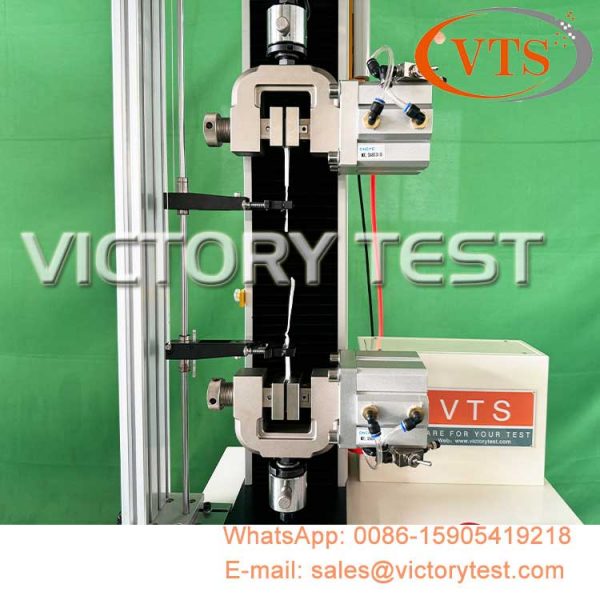

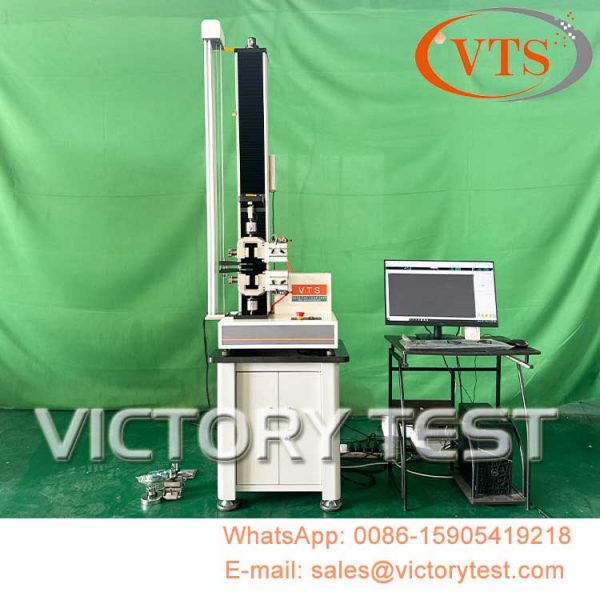

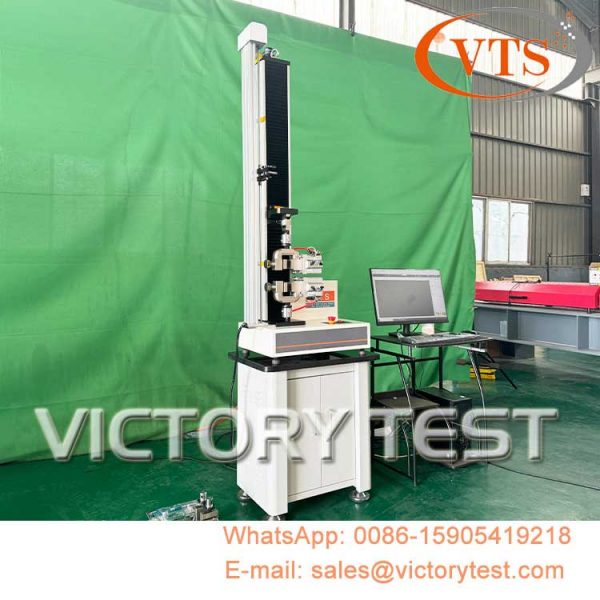

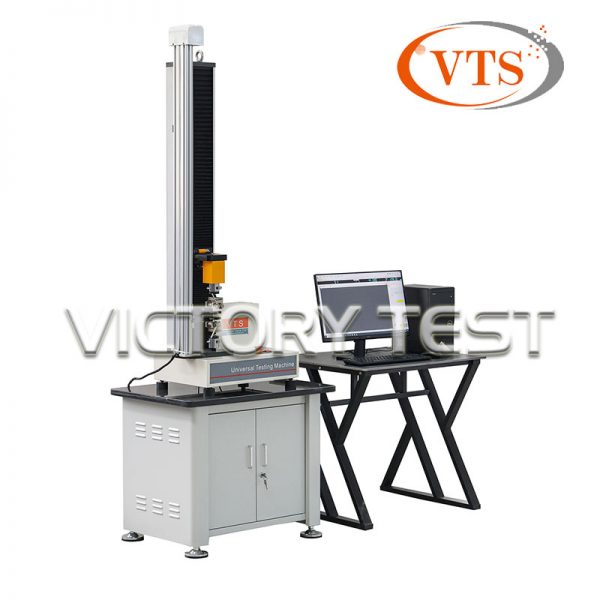

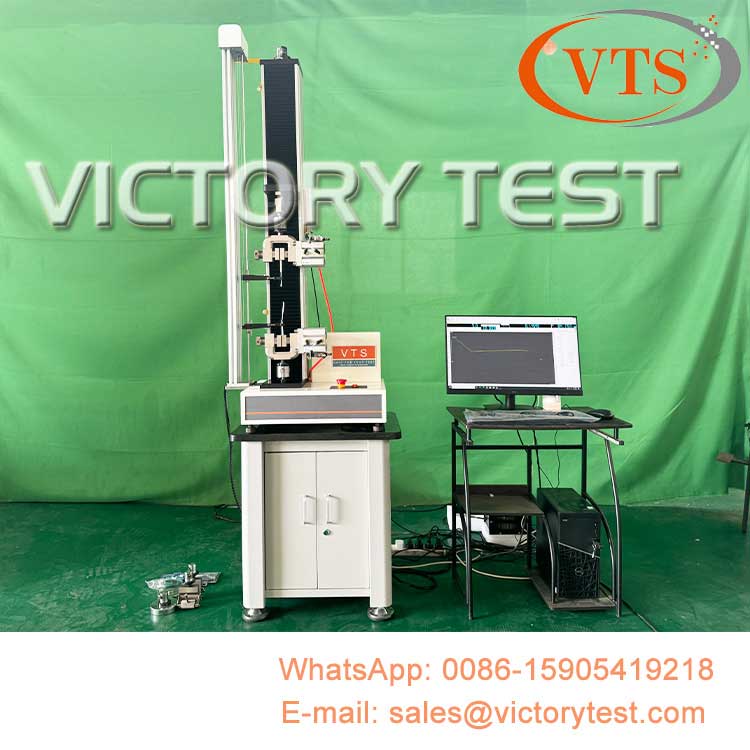

WDW-5 5kN 500kg Computerized Electromechanical Universal Testing Machine
1. Single column, table type
2. Load capacity: 500N, 1kN, 2kN, 5kN
3. Test items: tensile, compression, peeling, etc.
4. Test materials: plastic film, paper, adhesive, taps, textile, rubber, etc
- Description
- Inquiry
WDW-5 Computerized Electromechanical Universal Testing Machine 5kN 500kg
(5kN, 1-Column, 0.5 Class, Table-top Type)
Applications & Functions
This WDW-5 computer controlled one column table-top type electronic UTM is used to do tensile test of non-metal materials with small tensile strength, like plastic film, paper, adhesive, taps, textile, rubber, etc. By means of relative testing accessories, it also can do compression, bending, peeling and tearing, etc test. It meet with the requirements of GB, ISO, JIS, DIN and ASTM, etc. They are essential testing instrument for quality testing section, university and colleges, research institution and industrial and mining enterprise.
Standards
ASTM A730, ASTM E4, ASTM E8, ISO6892, ISO7438, ISO7500-1, EN 10002-4, GB/T228-2002, etc.
Main Technical Specifications
| Model Specification | WDW-0.5 | WDW-1 | WDW-2 | WDW-5 |
| Force Range (kN) | 0.01~0.5 | 0.02~1 | 0.04~2 | 0.10~5 |
| Force Accuracy | ±1% of applied force | |||
| Position Resolution (mm) | 0.001 | |||
| Test Speed Range | 0.005mm/min~500mm/min, servo control | |||
| Crosshead Travel (mm) | 800 | |||
| Power Requirement | 1 phase, 220V±10%, 50Hz | |||
| Environmental Requirements | Room temperature~40℃, relative humidity<80% | |||
| Frame Dimension (mm) | 600×420×1700 | |||
| Frame Weight (kg) | 300 | |||
For more detailed info, please feel free to contact us by email: info@victorytest.com
