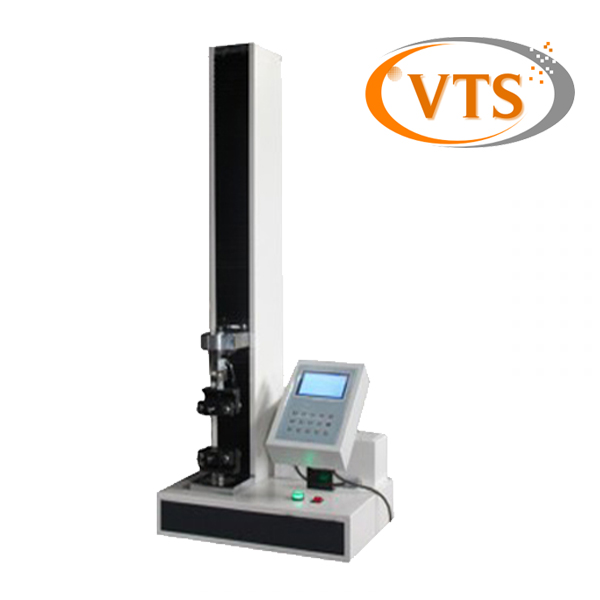

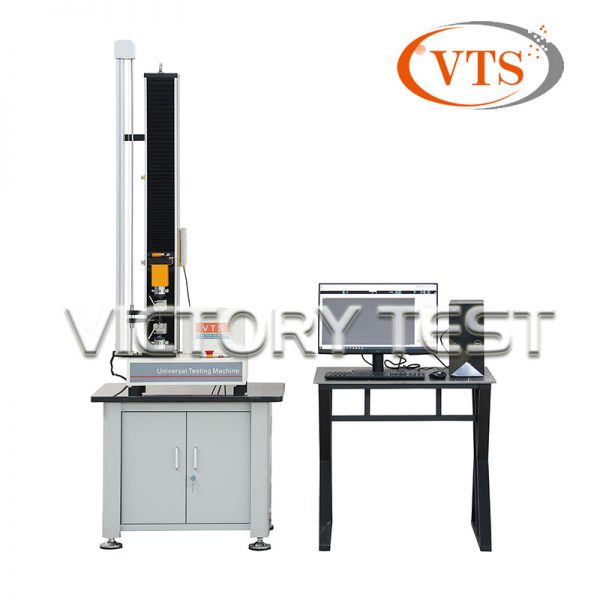

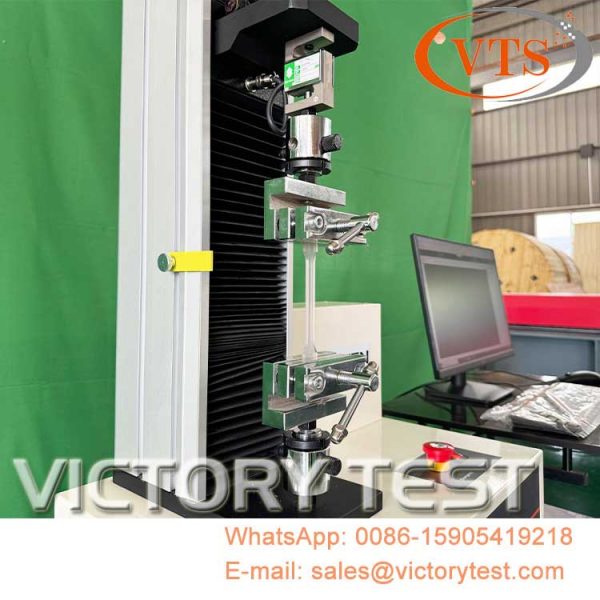

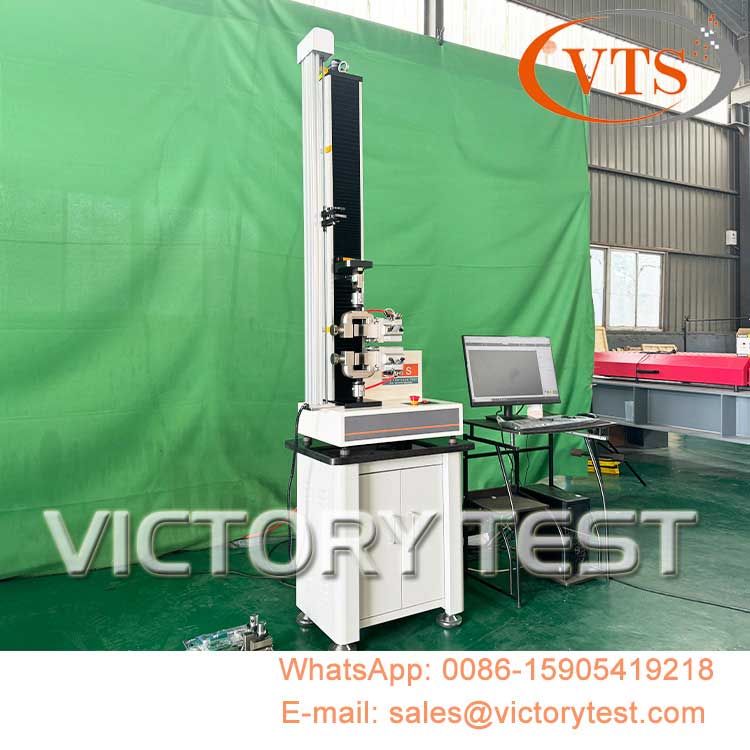

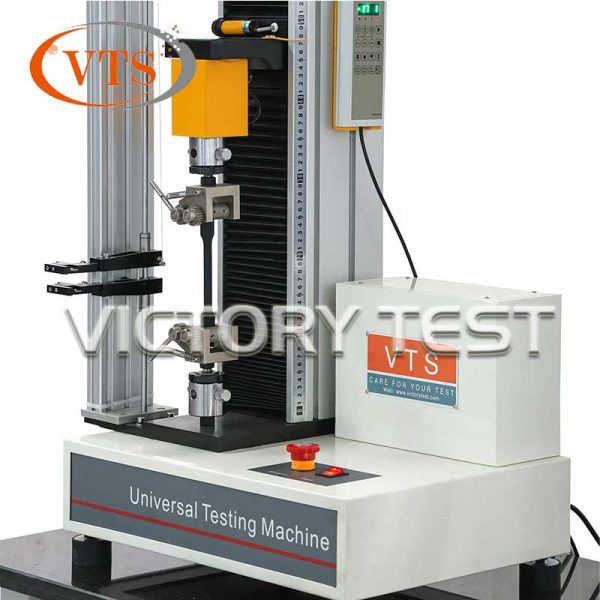

WDS-5 Digital Display Electromechanical Universal Testing Machine 5kN 500kg

WDS-5 Digital Display Electromechanical Universal Testing Machine 5kN 500kg

1. Single column, table type

2. Load capacity: 500N, 1kN, 2kN, 5kN

3. Test items: tensile, compression, peeling, bending, etc.

4. Test materials:  paper, rubber, plastic, cable wire, filament, thin films, adhesives, foam, packaging, composite material, plastic profile, spring, etc.

  • Description
  • Inquiry

WDS-5 Digital Display Electromechanical Universal Testing Machine 5kN 500kg

(500N, 1kN, 2kN, 5kN, 1-column, digital display)

Applications & Functions

This WDS series one column digital display type UTM are suitable for tensile test of non-metal materials, like paper, rubber, plastic, cable wire, filament, thin films, adhesives, foam, packaging, composite material, plastic profile, spring, etc. It also can execute the other tests, like compression, bending, shearing, peeling, friction, puncture test by adding relative optional accessories. It conforms to GB, ISO, JIS, DIN, ASTM, etc standards. It is an ideal testing machine for quality control department, scientific research, universities and colleges, industrial and mining enterprises.

Main Technical Specifications:

Model

WDS-0.5, WDS-1, WDS-2, WDS-5

Host Machine Structure

Table type

Max Load Capacity

500N, 1kN, 2kN, 5kN

Class of Machine

1.0

Load Range

2%-100%FS

Load Accuracy

Within ±1% of max load

Load Resolution

1/200000

Range of Deformation Measurement

2%-100%FS

Resolution of Deformation

0.01mm

Accuracy of Displacement

Within ±1% of indicating value

Resolution of Displacement

0.01mm

Range of Testing Speed

0.01-500mm/min

Effective Tensile Space (mm)

600-800mm

Tensile Attachment

ONE SET

For more detailed info, please contact us by email: info@victorytest.com
