V-Notch Broaching Machine

Test standard: ASTM E23, ISO148, v.v.

Loại: Máy kiểm tra va đập

Mô tả:__________
Video
Yêu cầu

V Notch Broaching Machine ASTM E23

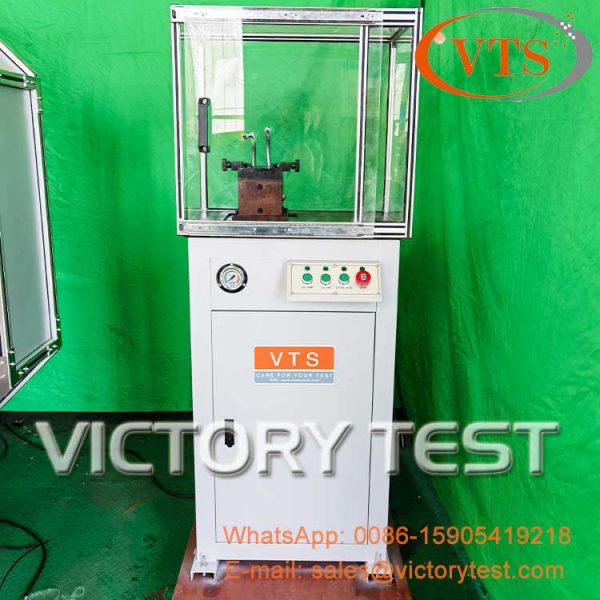

Mẫu: CSL-B Electric Broaching Machine

(For making U-notch and V-notch of Impact sample)

Ứng dụng & Tính năng:

Notch broaching machine is a very useful tool for process V and U notch of charpy impact specimen.

Due to one-time completing broaching, the identity of machining notch is very good. The series of machine can be divided into two kinds, manual type and electric type. U type and V type are all made with W18Cr4V material to assure its high rigidity, good wearable. Each broach can be used for about more than 20000 times.

Tiêu chuẩn:

The series machines comply with GB2106-80 “Metal Charpy (V type) Gap Impact Test Method” and GB229-94 “Metal Charpy (U type) Gap Impact Test Method”. It can also meet American standard, European standard ASTM E23-02a, EN10045, ISO148, ISO083, and so on.

Thông số kỹ thuật chính:

Mẫu	CSL-B
Cut mode	Electric type
Shape of sample gap	V notch, U notch
Sample size	10×10×55mm
Broach moving distance	350Mm
Broach material	W18Cr4V
Dimensions of host machine	580×400×1140mm
Net weight	200Kg

Standard supply:

1 piece of V-notch cutter, 1 piece of U-notch cutter.

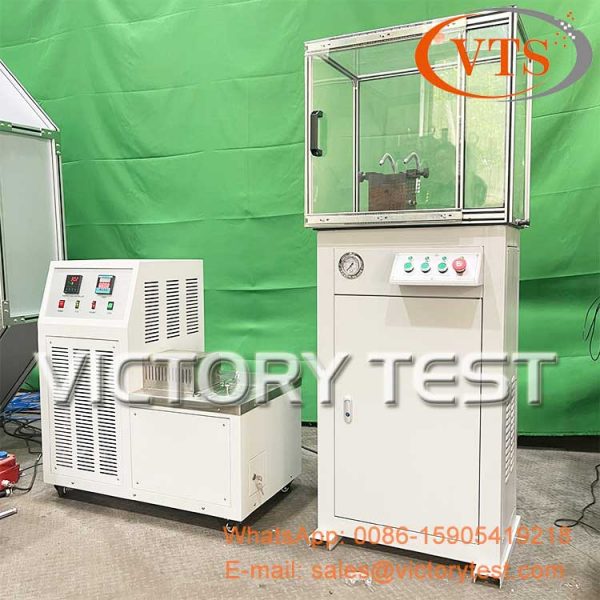

Besides Notch Broaching Machine, we also have Charpy Impact Testing Machine（300J, 500J, 600J, 750J), Low Temperature Chamber (-30C, -60C, -80C, -100C, -196C).
