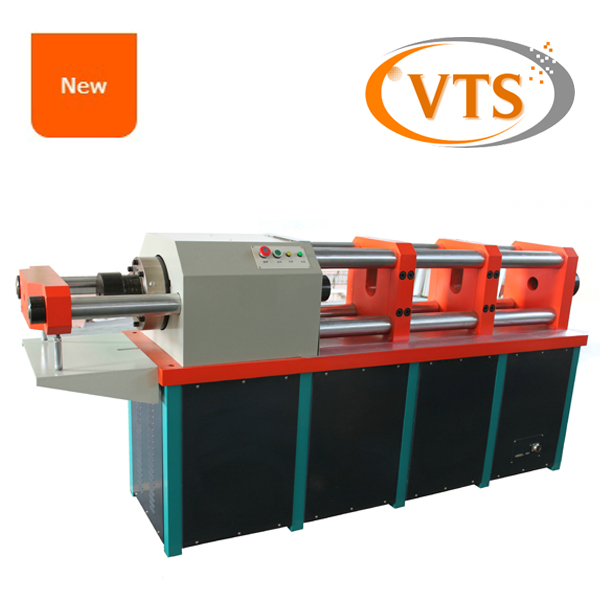

WDW-300S / WDW-500S PC Strand Relaxation Testing Machine
(horizontal type, 1000hours test, 300kN or 500kN, φ9.50mm-φ15.24mm)
1. Main function
This machine is used to do stress-relaxation test of steel strand, galvanized steel wire, indented wire etc metal materials. The host machine adopts horizontal structure, adjust work space by lead screw, and the transmission system is inside the machine base, the machine has very high stiffness, which guarantee the accuracy of test results.
PC realizes variety of control modes, which include constant test force, constant displacement etc closed-loop control and test process control, all kinds of control modes can be switched without impact.
The computer can calculate the test results of 1000 hours according to the test data not more than 200 hours, it can also do continuous test of 1000 hours. The computer real time displays test force and test curves, can save and print the test results, test curves and test report.
2. Thông số kỹ thuật chính
- Max test force: 300kN/500kN (30 MT/50MT)
- Measuring range of test force: 2% ~ 100% (6-300Kn, 10-500Kn)
- Accuracy of indicating force: ≤±1% of indicated value
- The load measuring resolution: 1/300000
- Loading speeding: 100-5000N/s, arbitrary setting
- Tensile test distance: 2000Mm
- Grip moving speed: 0 ~ 20 mm / phút
- Độ chính xác đo dịch chuyển: ≤±0.5%FS
- Displacement resolution: 0.001Mm
- Tensile stroke: 0-200Mm
- Steel strand test fixture: φ9.50mm, φ11.10mm, φ12.7mm, φ15.24
- Test time (Max): 1000 hours
- Resolution of temperature sensor: 0.3°C
- Machine size: 3800×700×1150mm
- Cung cấp năng lượng: 3-pha, 380V, 50Hz, 2Kw
