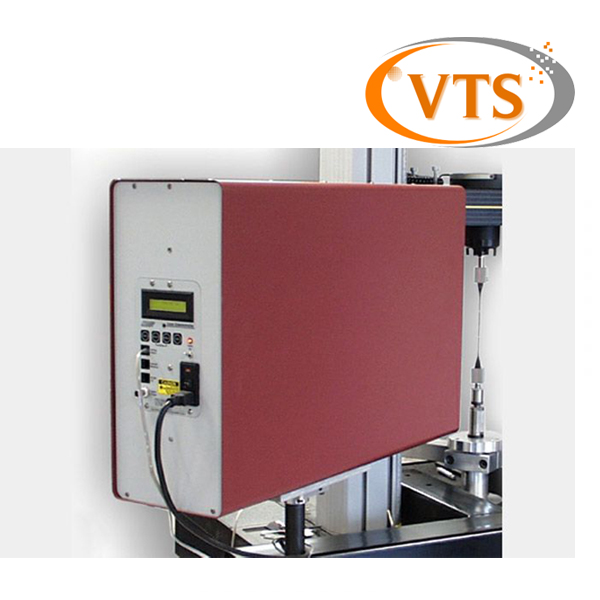

Máy đo độ giãn dài laser

Laser Extensometers

(For precision Non-contact measurement)

Ứng dụng:

This series Laser Extensometers are precision, Thiết bị tầm rộng được thiết kế đặc biệt cho chính xác, đo không tiếp xúc biến dạng trên các vật liệu khác nhau trong điều kiện kéo hoặc nén. They may also be utilized for other applications where non-contact measurement is desired. They are completely self-contained and are housed in a single compact enclosure. They take advantage of the latest laser technology in order to achieve high performance with minimal maintenance.
The laser extensometers are normally operated with the beam n a vertical plane but they can be operated in other planes as well. Target materials are available for various measurement applications.

Thông số kỹ thuật chính:

1. Measurement Range: 8 đến 127 Mm (0.3 đến 5 Inch)
2. Max. Resolution: 0.001 Mm (0.0001 Inch)
3. Linearity: ±0.01 mm (±0.0004 inches)
4. Repeatability: ±0.005 mm (±0.0002 inches)
5. Max. Scan Rate: 100 scans/second
6. Target Distance: Two selectable factory preset values between 254 và 457 Mm (10 và 18 Inch)
7. Default values are: 305 và 381 Mm (12 và 15 Inch)
8. Zero Suppression: Reading may be set to zero in measuring range
9. Scan Line Orientation: Vertical
10. Scan Averaging: Moving window averaging over a selectable number of scans
11. Analog Output: 16 bit, ±10 VDC standard
12. Full Scale Ranges: 0.1, 0.2, 0.5, 1.0, 2.0, 5.0, 10.0, or 20.0 Inch;
Optional 2.0, 5.0, 10, 20, 50, 100, 200, or 500mm
13. Digital Communications: RS-232 serial communications, standard 3 wire
14. Selectable Baud Rate: 9600, 4800, 2400, or 1200
15. Display: 2 lines, 16 character digital display, backlit LCD
16. Power Input: 220 VAC ±10%, 50/60 Hz optional
17. Size: L x H x W=668 x 457 x 196mm (27x 18 x 7.7 Inch)
18. Trọng lượng: 4.5 Kg (10 lbs)
19. Mounting Provisions: 1/4-20 UNC tapped holes in base (4)
Laser Source: Diode laser, 670 nm, CDRH Certified Class II laser instrument
