ISO7802 Wire Wrapping Testing Machine

.ISO 7802 Wire Wrap Testing Machine is used to do wrapping test of 0.1mm – 10mm steel wire, galvanized steel wire, copper and copper alloy line of contact, aluminum wire, high strength wire, v.v. It also can be used for adhesion test of galvanized coating test.

In standard, it conforms to ISO7802: 2013: Metallic Material- Wire-Wrapping Test.

Loại: Máy kiểm tra sợi PC và dây

Mô tả:__________
Video
Chuẩn
Testing samples
Yêu cầu

NDS-10 WIre Wrapping Testing Machine

(wire diameter Ф1.0- Ф10mm)

1. Main function

This machine is used to do wrapping test of 0.1mm – 10mm steel wire, galvanized steel wire, copper and copper alloy line of contact, aluminum wire, high strength wire, v.v. It also can be used for adhesion test of galvanized coating test.

In standard, it conforms to ISO7802: 2013: Metallic Material- Wire-Wrapping Test.

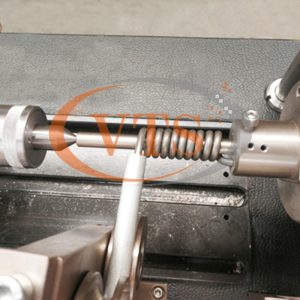

The test consists of winding a wire to a specified number of turns around a mandrel of the diameter specified in the relevant standard to form a closely wrapped helix. It may also include a specified sequence of windings and un-windings, or even re-windings. It provides reliable measuring method for wire manufacturers and users.

2. Technical specifications

Không.	Items	Spec.
1	Wire diameter	Ф1.0- Ф10mm
2	Wrapping test	30r / phút
3	Axial loading weights	not exceeding 5% of the nominal tensile strength of the wire during winding
4	Mandrels	6 – 20mm
5	Counting resolution	360°/r
6	Working voltage	220VAC /50Hz
7	Dimension (LWH)	1200x560x1250mm
