Rebar Tensile Strength Testing Machine
Max Load capacity: 300kN, 600kN, 1000kN, 1500kN, 2000kN,
Testing standard such as SS 560, AS/NZS 4671, ISO 15630-1,2,3, ASTM A615/A615M ,BS EN 4449,BS EN 10025, ISO 6935-2, ASTM A706, NFA 35-016-1, JIS G3112 etc.
- Description
- Inquiry

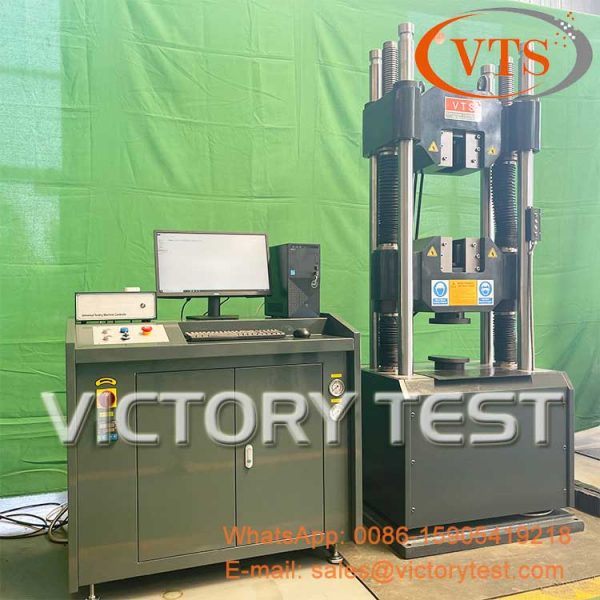

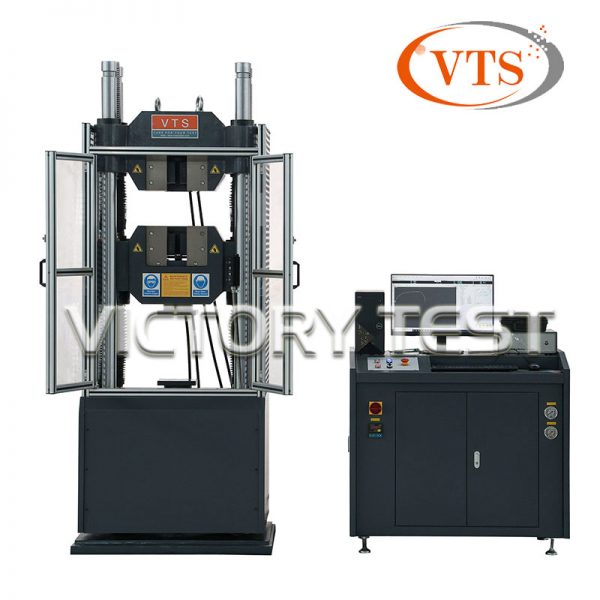

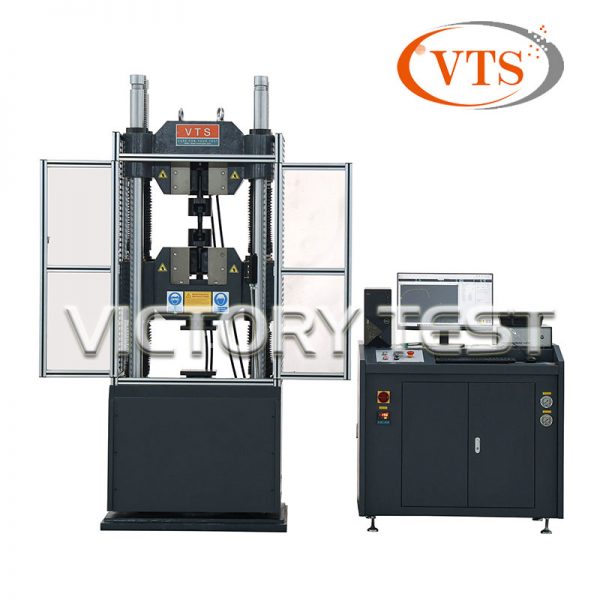

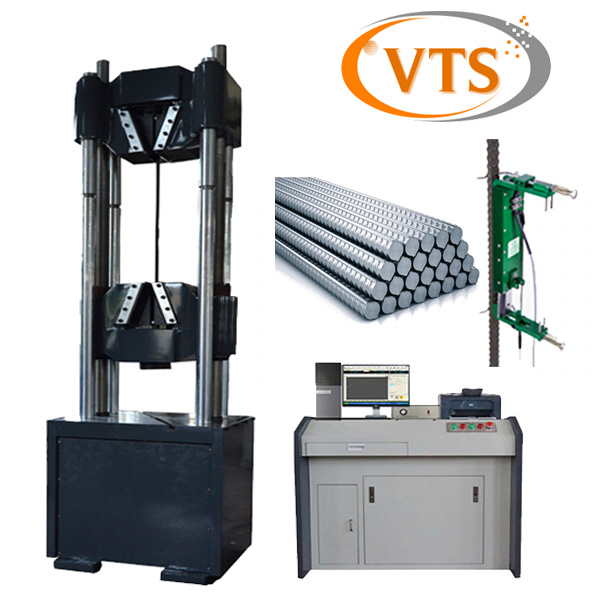

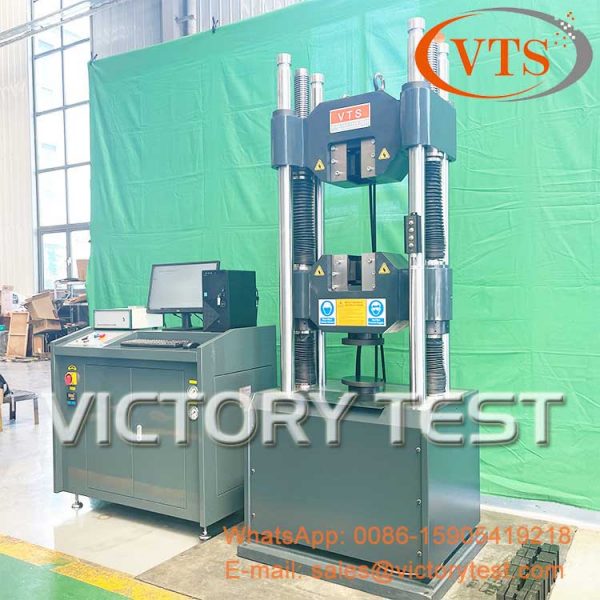

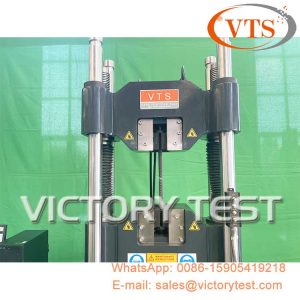

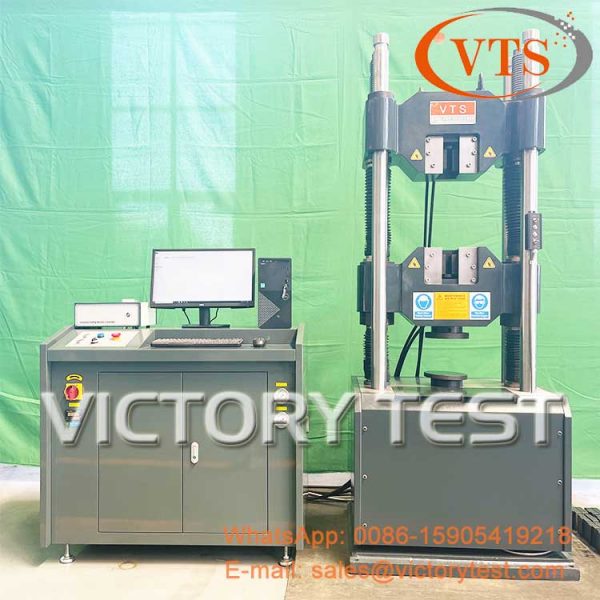

Rebar Tensile Strength Testing machine
WAW Series 300kN 600kN 1000kN 2000kN Steel Rebar
Tensile Strength Testing Machine
1. Introduction
This WAW serries Computerized Electro-hydraulic Servo Universal Testing Machine is widely used for tensile and bending test for steel rebar, carbon steel bar, deformed steel bar.

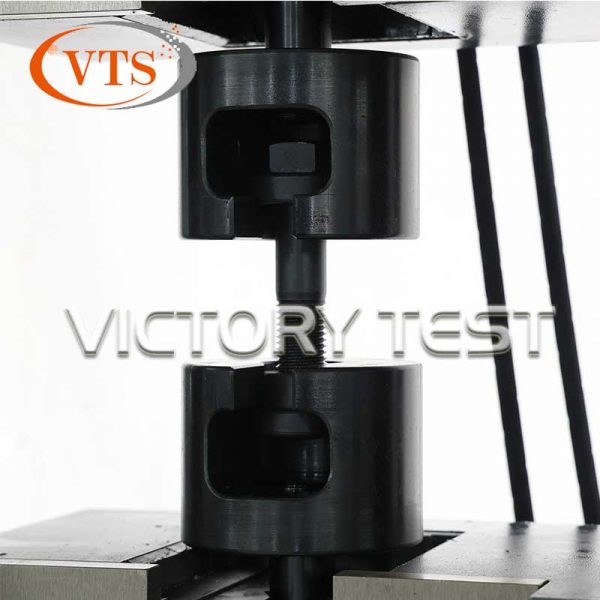

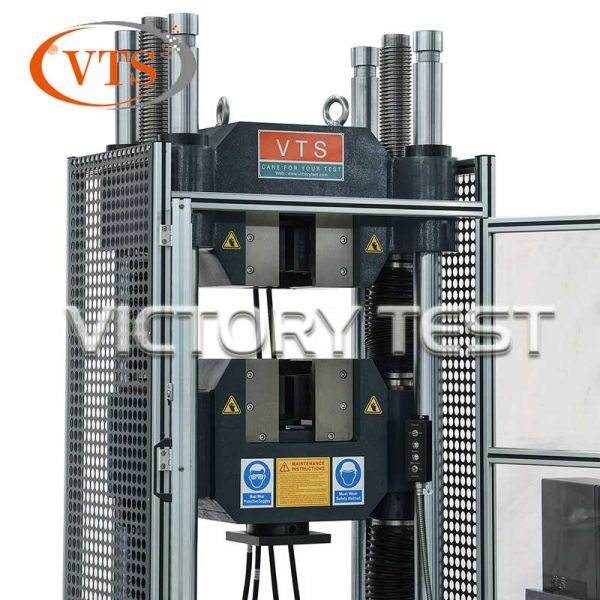

It adopts 4 columns with chrome plated and 2 leading screws, high stiffness, more stable.Press button operated hydraulic tensile grips, easy operate.
It’s computer controlled servo hydraulic type, the piston goes up and high precision load cell directly measuring testing force, encoder measuring displacement and electric extensometer measuring specimen’s extension. The machine is calibrated according to ISO 75001 and ASTM E4.
It can conform to testing standard such as SS 560, AS/NZS 4671, ISO 15630-1,2,3, ASTM A615/A615M ,BS EN 4449,BS EN 10025, ISO 6935-2, ASTM A706, NFA 35-016-1, JIS G3112 etc.
2. Main technical parameters
Parameter Model | WAW-300E | WAW-600E | WAW-1000E | WAW-2000E |
Max. testing force (kN) | 300 | 600 | 1000 | 2000 |
Accuracy | ±0.5% of reading value | |||
Round specimen diameter range (mm) | φ10-φ32 | φ10-φ40 | φ13-φ60 | Φ15-φ70 |
Flat specimen thickness range (mm) | 0-25 | 0-30 | 0-40 | 10-70 |
Flat specimen width range (mm) | 75 | 90 | 100 | 120 |
Tensile space (mm) | 600 | 740 | 800 | 950 |
Compression space (mm) | 530 | 650 | 670 | 750 |
Clearance between columns (mm) | 465 | 485 | 515 | 700 |
Upper and lower compress plates size (mm) | φ120 | φ160 | 200×200 | φ240 |
Distance of bending by pass roll (mm) | 30-400 | 30-430 | 30-380 | 50-430 |
Max. piston stroke (mm) | 200 | 200 | 250 | 250 |
Power supply | 380V±10%, 50Hz, three phase | |||
Work environment | 10-40℃, Relative humidity≤80% | |||
Dimension of host machine (mm) | 740×620×2058 | 790×690×2330 | 880×760×2660 | 1120×850×3270 |
Dimension of control cabinet (mm) | 1150×870×650 | |||
Weight (kg) | 1800 | 2500 | 3500 | 5000 |
For more details, please feel free to contact us: info@victorytest.com
