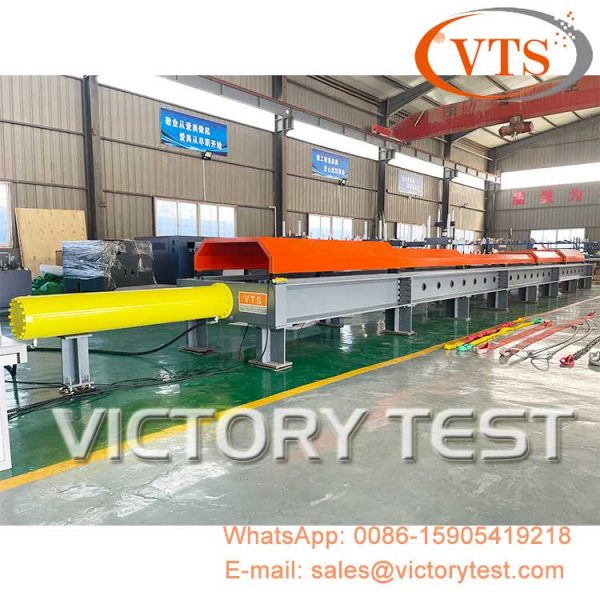

Horizontal Tensile Testing Machine for Overhead Conductors
ASTM B524 / B524M, ASTM B711, IEC 60794-4, IEE 1138, IEC 61089, HD-626-S1
(300kN, 600kN, 0.5 class test accuracy)
1. Applications & Function:

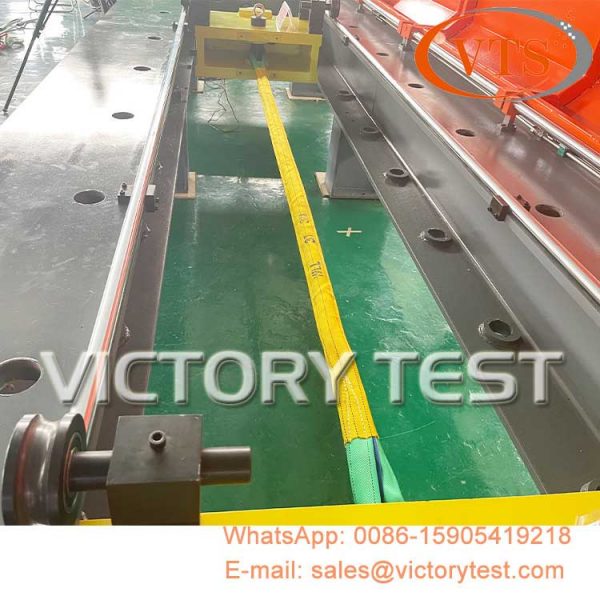

These Series of Horizontal Tensile Testing Machine is designed specifically for tensile testing of overhead conductors. These test frames use a horizontal test opening to accommodate long specimens and high elongation demands.
This computer controlled servo hydraulic horizontal tensile testing machine is widely used for long specimen’s tensile strength test, for example, electric cable, optic cable, steel wire rope and other rope materials. The testing machine adopts hydraulic cylinder to load, load cell directly measure testing force, encoder to measure displacement of the piston stroke, and extensometer to measure deformation.
PC-based machine control software provided with the machine is upgraded to include data acquisition and data analysis.
2. Standard
It conforms to ISO 6892, IEC61089, EN50182,ASTM B524 / B524M, ASTM B711, IEC 60794-4, IEE 1138, HD-626-S1 etc.
3. Main Technical Specification
3.1 Max. testing force: 300kN
3.2 Rang of test force: 6kN-300kN
3.3 Accuracy of testing force: better than ±1% of indicating value
3.4 Resolution of testing force: 1/100000
3.5 Resolution of displacement measuring: 0.01mm
3.6 Load testing speed: 0-70mm/min
3.7 Testing force measuring way: load cell 300kN
3.8 Multiple testing curves displayed: force- displacement, force-time, force- deformation, stress- strain, time- displacement, etc.
3.9 Control cabinet and mainframe is separated, it also has safety protection shied.
3.10 Power: 3 phase, 4 wires, 380V±10%, 50Hz

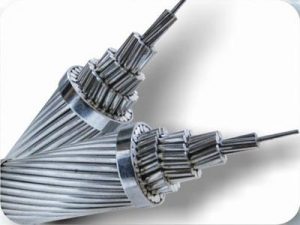

4. Test specimen

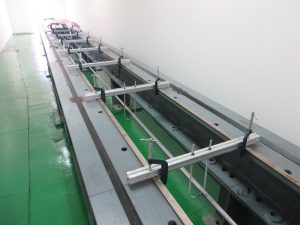

5. Test photo-IEC61089 ACSR Overhead Conductor Tensile Test
Remark: the testing space and piston stroke can be made according to your requirement.
For larger load capacity, it also can be made according to the customer’s order.
