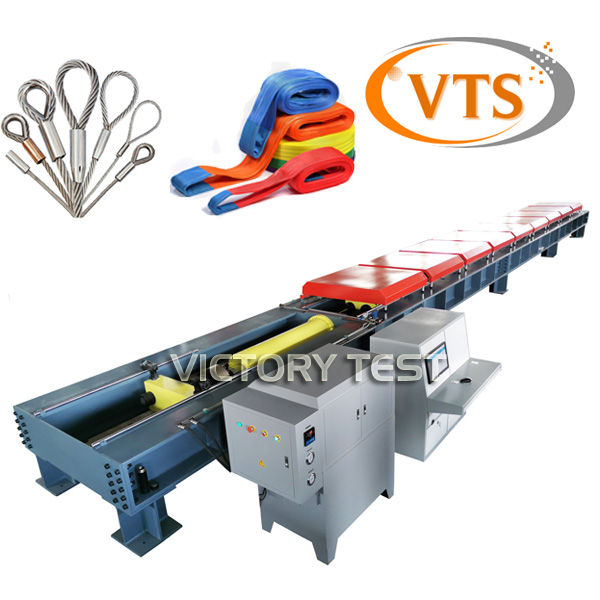

150MT Horizontal Tensile Test Bed
(100MT, 200MT, 300MT, 500MT, 700MT, etc)
1. Introduction:
This computer controlled horizontal tensile testing machine /test bed/ test bench is mainly used for tensile strength test of long materials, like steel wire rope sling, cable, nylon rope, chain, webbing sling, etc. It adopts precision servo valve hydraulic power pack to load, high precision load cell to measure testing force, photoelectric encoder to measure displacement, computer control, proof load and break load test, testing space and piston stroke can be made according to the customer’s requirement.
2. Main technical specifications:
| Model | WLW-500 | WLW-1000 | WLW-2000 | WLW-3000 | WLW-4000 |
| Load capacity | 500kN | 1000kN | 2000kN | 3000kN | 4000kN |
| Accuracy | ±1% | ||||
| Effective testing space | 6.5 M | 6.5 M | 6.5 M | 6.5 M | 6.5 M |
| Max. piston stroke | 1000 mm | 1250mm | 1250mm | 1250mm | 1250mm |
| Power supply | 3-phase, 380V±10%, 50Hz (customized made) | ||||
3. Test specimen:
4. Test Photo

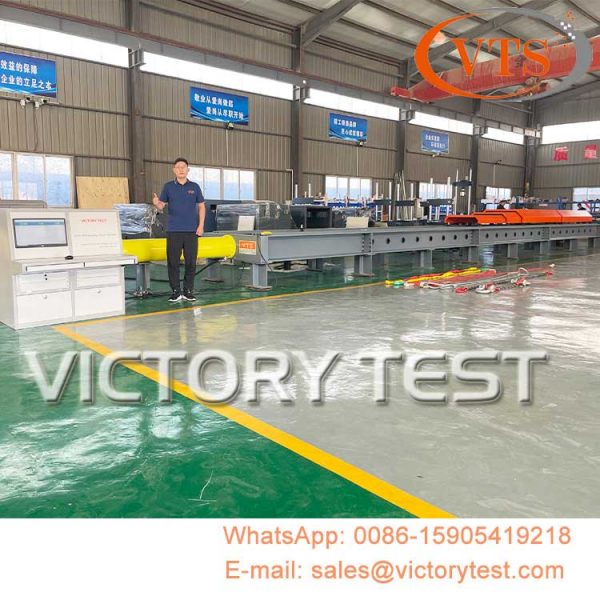

5. Factory photos-Anchor Chain Tensile Test Bed
Remark: the testing space and piston stroke can be made according to your requirement.
For larger load capacity, it also can be made according to the customer’s order.
For more info, please send Email: info@victorytest.com
Mobile & Whatsapp No.: +86-15905419218
