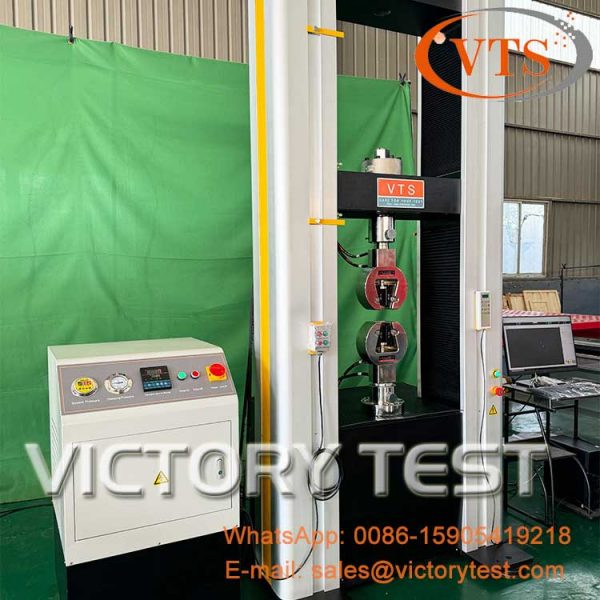

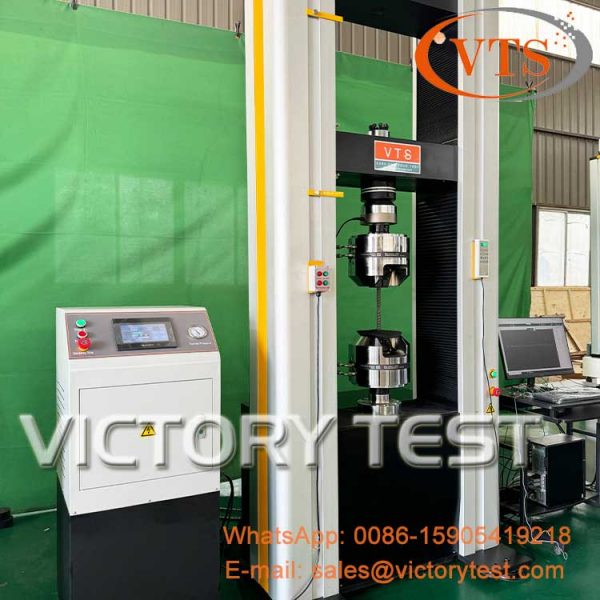

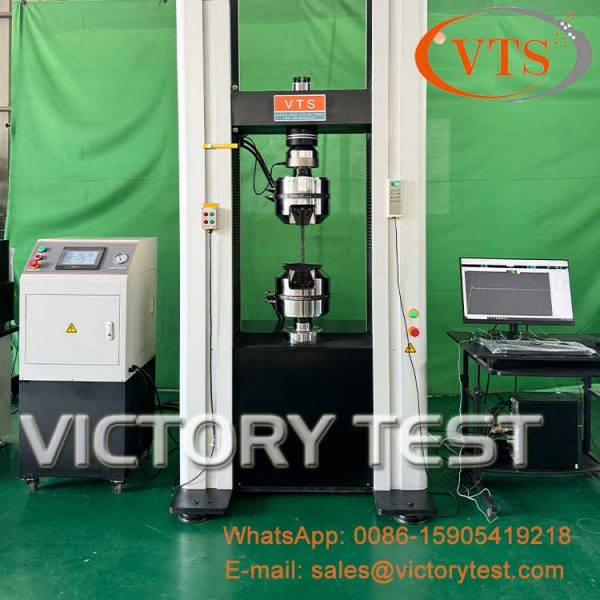

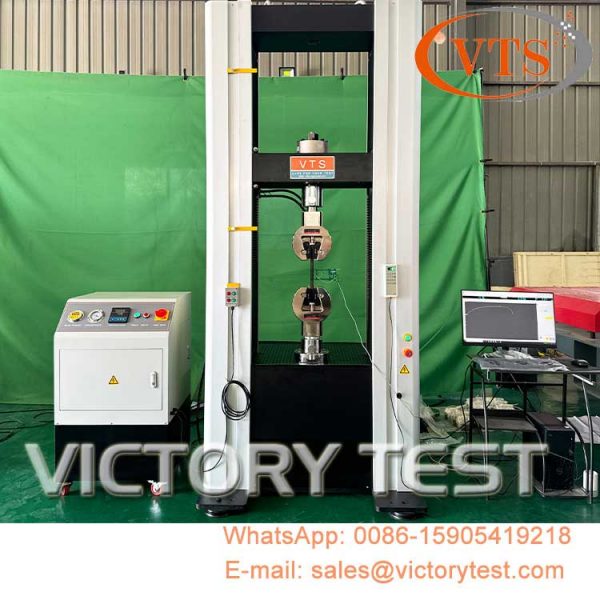

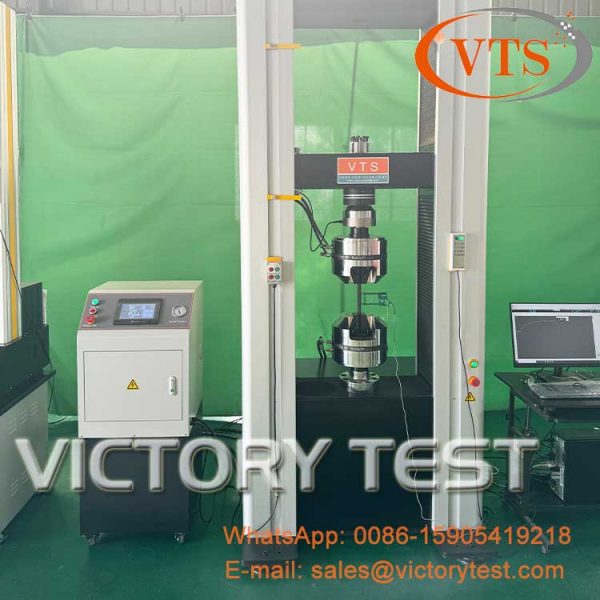

승온 장력 시험기

승온 장력 시험기

（Load capacity 200kN, 300kN, 0.5 class test accuracy）

응용 프로그램 & Functions

WDW-E Series Computerized Electronic Elevated Temperature Tensile Testing Machines are applicable for elevated (high temperature) temperature tensile test of metal materials and non-metal materials. It adopts hydraulic operated tensile clamp, more convenient to grip the specimen. The machine is calibrated according to ASTM E4 and ISO7500-1 international standard. They are essential testing instrument for quality testing section, university and colleges, research institution and industrial and mining enterprise.

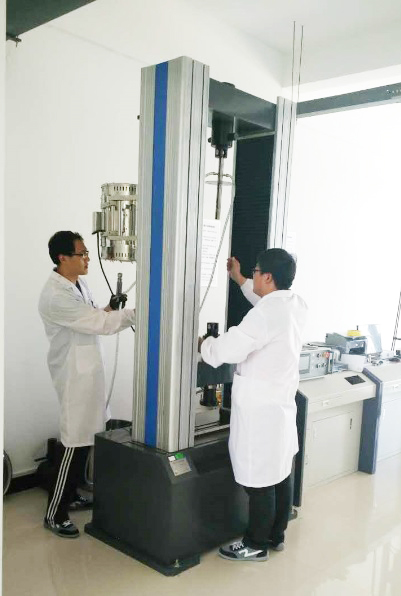

It adopts three section two sides opened high temperature furnace, it is electrical heating type high temperature resistance furnace. The temperature control range is 300~1200℃. It is an ideal high temperature furnace for metal materials or non-metal materials’ physical property test under high temperature.

주요 기술적인 매개변수:

1. Work temperature: 300~1200℃

2. Length of soaking zone: 100밀리미터

3. Heating rate: ≥800℃/h

4. Heating component: φ1.5mm resistance wire

5. Temperature measuring component: K type, N type and

S type thermocouple

6. Heating section: 3 section

7. Sensitivity of temperature measuring: 0.1°C

8. Accuracy of temperature measuring: 0.2°C

9. Constant temperature control accuracy:

100~600℃ ( ±2℃), 600~900℃ (±2.5℃), >900 °C (±3℃)

10. Temperature control gradient:

100~600℃ (2°C), 600~900℃ (3°C), >900 °C (±4℃)

11. Furnace inside dimension: φ90×320mm

12. Furnace outside dimension: φ320×380mm

13. Working power supply: 3-단계, 380V, 5.5kW

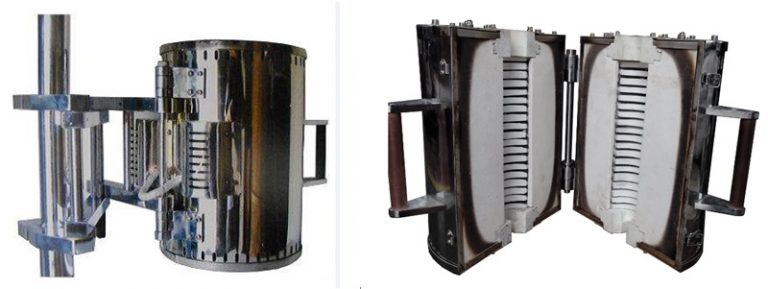

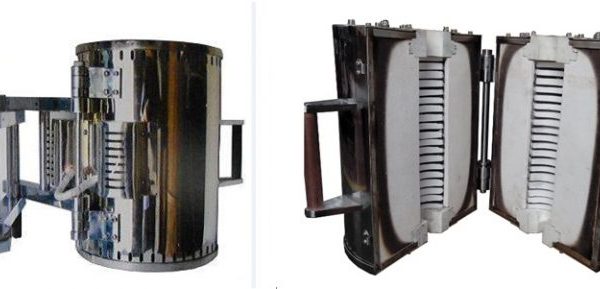

High Temperature Furnace and Temperature Control Meter:

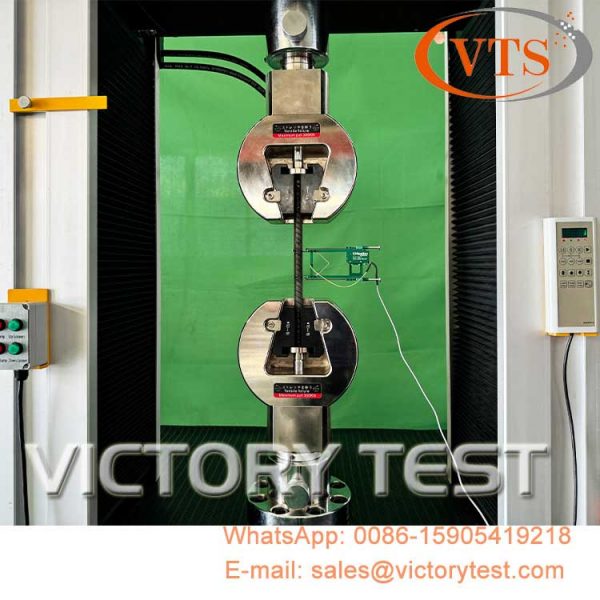

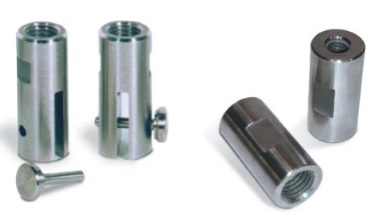

High Temperature Tensile Holders:

주요 기술 명세:

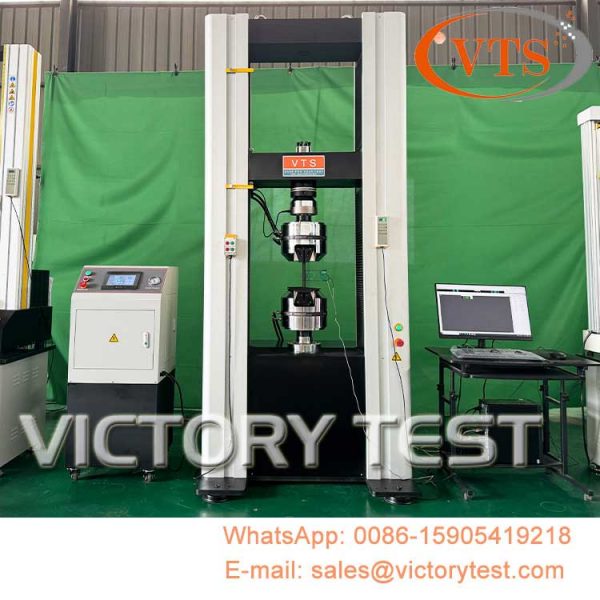

승온 장력 시험기:

자세한 정보, 문의하시기 바랍니다- 이메일: info@victorytest.com
